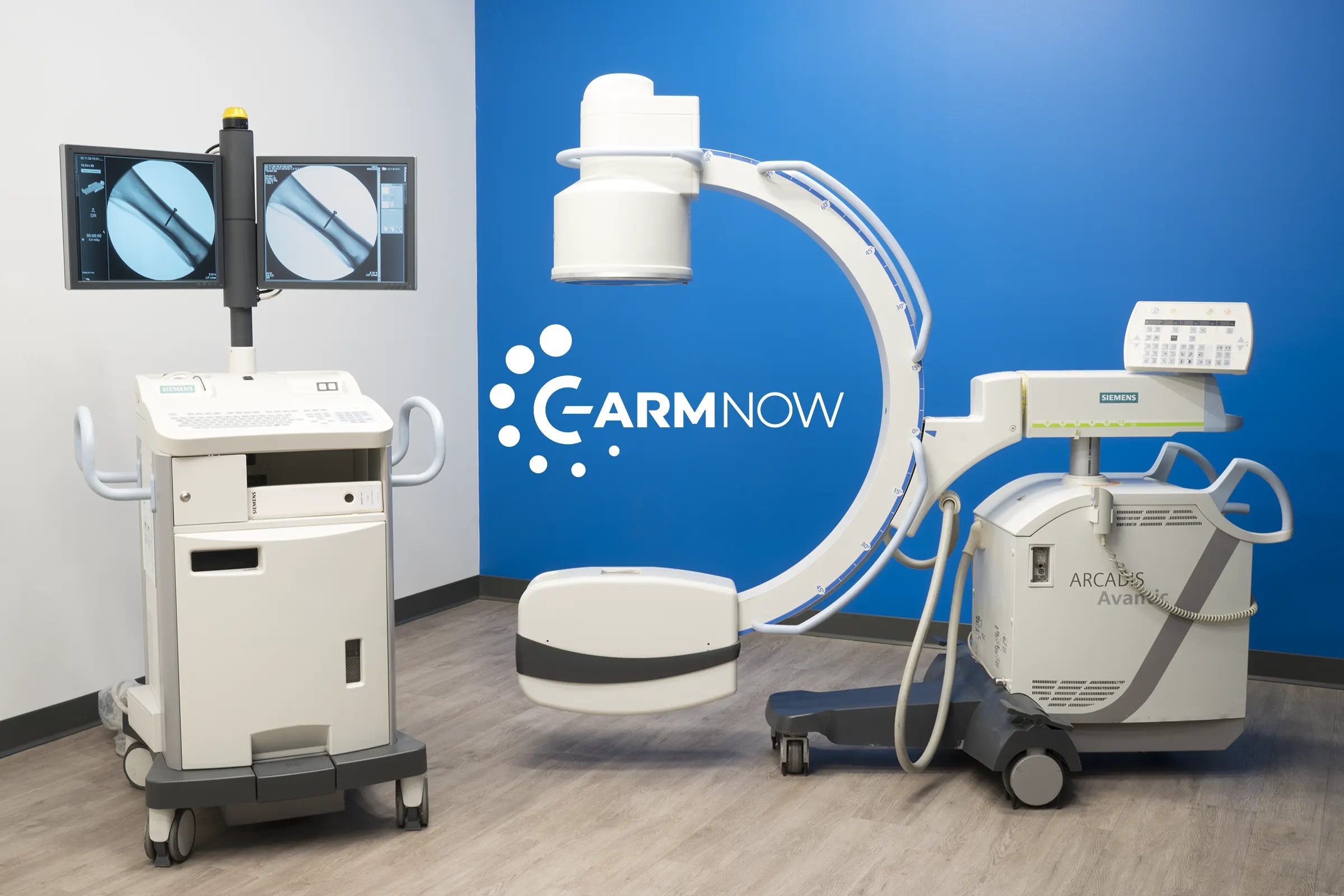

The Siemens ARCADIS Avantic is a high-end medical imaging device that has set new benchmarks in the industry for power and image coverage. It is a multiple purpose high-end C-Arm machine offering an unparalleled range of applications including cardiac surgery, vascular surgery, gastroenterology, orthopedics as well as any practice where high power and a large view field are required.

Compared to other II based systems in the market with generator power ranging from 2.3 kW to 15 kW, the Arcadis Avantic far surpasses them with 25 kW of generator power. It also offers the largest Image Intensifier detector on the market! The 13” image intensifier, a fully digital 1K2 imaging chain, and its automatic dose, contrast, and brightness controls yield brilliant images in almost every situation.

The ARCADIS family continues the pace-setting tradition of taking you to a new level of clinical excellence in intraoperative imaging.

Specifications Datasheet

X-ray Generation
Tube
Rotating anode
Nominal Power
25kW
Imaging
Image intensifier
13"
II formats
13", 8", 6", 5"
Camera
High Resolution CCD
User Interface
Monitors
Two 19" LCD Flat Panel
Touchscreen
No
Geometry
Free space within C-arm
30.7"
Orbital Rotation
+90° to -42°
C-arm depth
28.7"
Source Image Distance
39.4"
Angulation
± 190°
Lowest lateral working position
?
Connectivity
Video Output
HDMI(Optional)
Networking (DICOM Optional)
Wired
Other
USB(Image Export)
Dimensions
C-Arm
71.7" H x 33.5" W x 77.6" L
C-Arm Weight
765 lbs
Workstation
74.4" H x 33.5" W x 27.6" D
Workstation Weight
395-415 lbs
