Full Size (II)

Siemens Arcadis Varic

Compact, ergonomic and flexibile. This C-Arm is most selected for use in pain, spine and orthopedic applications.

II Size: 9"
Max Power: 2.3 kW

More Info
Philips BV Pulsera

Robust and customizable, valued for its power and economic cost. Widely used for multipurpose applications that require extended, powerful penetration.

II Size: 9" or 12"
Max Power: 7.5 or 15 kW

More Info
Siemens Arcadis Avantic

Most powerful and largest II based system on the market. Used for all applications, but is most valued for Vascular.

II Size: 13"
Max Power: 25 kW

More Info

Full Size (FD)

Philips Veradius

Digital Flat Detector for exceptional image quality at lower dose. Perfect for any clinical application.

FD Size: 10.3"
Max Power: 15 kW

More Info
Philips Veradius Neo

Improved C design that is especially helpful for accommodating bariatric patients and larger areas of anatomy.

FD Size: 10.3"
Max Power: 15 kW

More Info
Philips Veradius Unity

All new touchscreen tablet user interface for exceptional ease of use during image acquisition and postprocessing.

FD Size: 10.3"
Max Power: 15 kW

More Info


Cart Empty

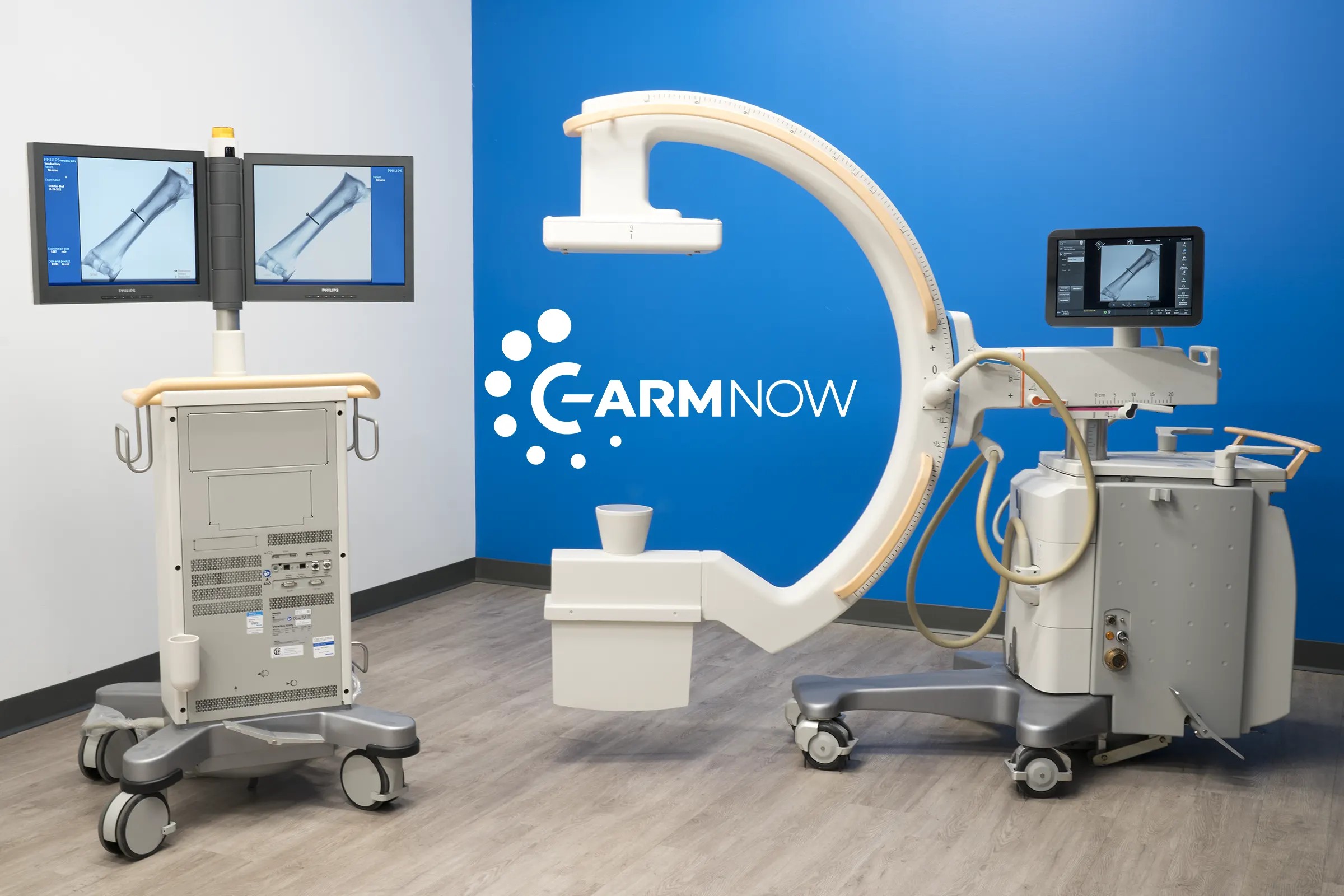

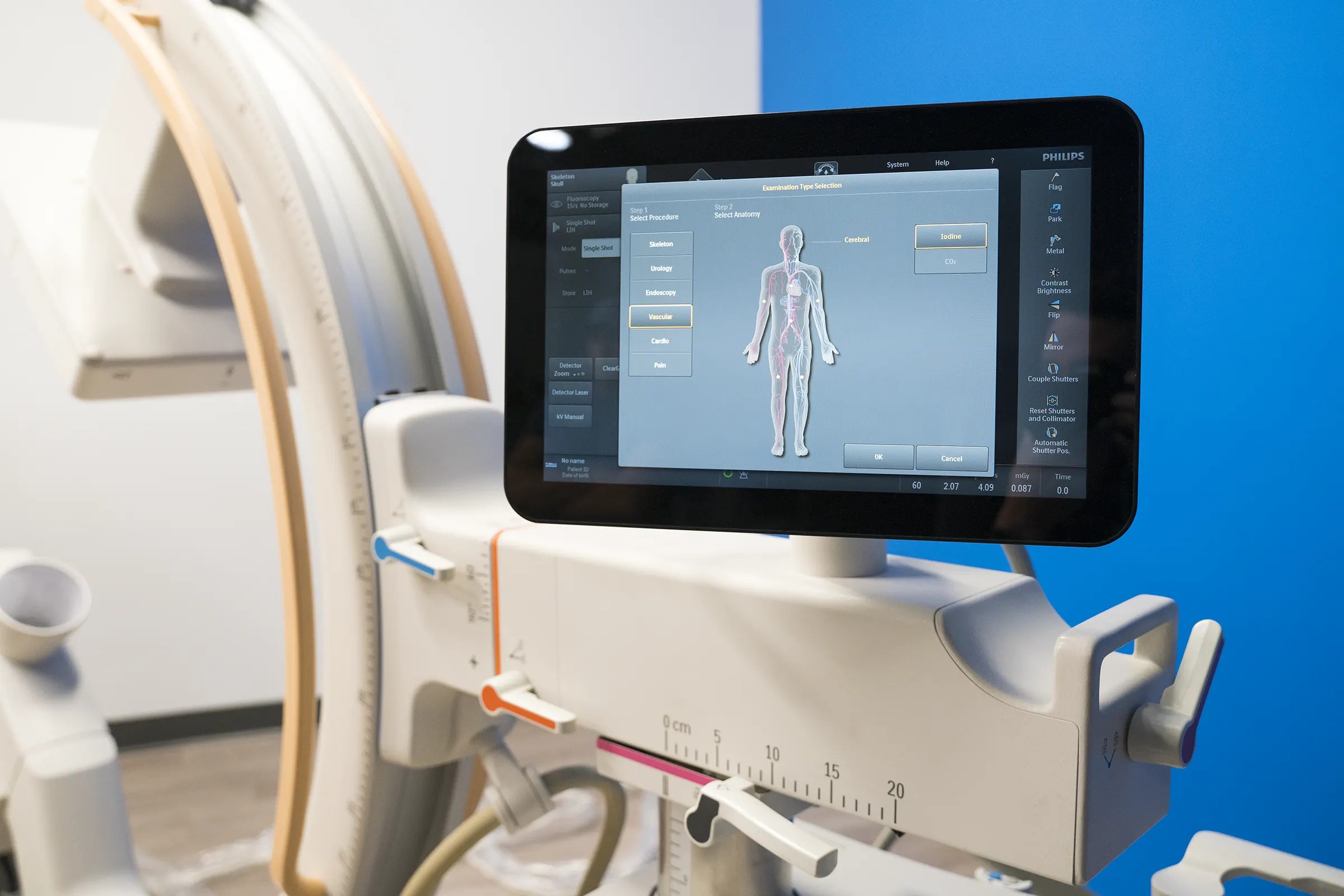

Boasting the innovative 10.3” flat panel features of the Veradius and optimized C-arc for increased patient access on the Neo, the Unity 3rd generation system reaches new levels of efficiency with a redesigned tablet control interface that simplifies workflow and creates an environment that is focused on the patient and procedure. Physicians experience a whole new level of simplicity with the tablet-like interface on the Veradius. With the touchscreen you can drag the shutters and iris into position. At every step you only see the features you need, so you can’t get overwhelmed or spend time looking for the right button.

The Veradius provides high-quality fluoroscopy, exposure, subtraction runs, and roadmap guidance to support orthopedic, cardiac, and vascular surgeons on performing the most challenging procedures, but is also perfect for minimally invasive procedures, such as endovascular repairs, performed using even smaller and more complex stents and other devices. The Veradius Unity is designed to meet these new challenges, providing distortion-free, high contrast imaging to support vascular image-guided interventions with excellence.

Specifications Datasheet

X-ray Generation
Rotating anode with active heat management
Nominal Power
15kW: 120kV, 125mA
Flat Detector
FD Resolution
1560x1420 pixels
User Interface
Two 19" LCD Flat Panel
Workstation Touchscreen
(Primary monitor only)
C-Arm Touchscreen
15.3" Tablet UI
Free space within C-arm
+90° to -50°
C-arm depth
Source Image Distance
± 200°
Lowest lateral working position
Video Output
BNC, DVI(Optional), HDMI(Optional)
Networking (DICOM Optional)
USB(Image Export), S-Video Input
66.4-85.7" H x 29" W x 77-108.6" L
C-Arm Weight
757 lbs
69" H x 32" W x 37" D
Workstation Weight
430 lbs
Request a Quote
Save up to 25% on 5 Years!
Ortho/Pain Package
Vascular Package
Cardiac Package
Paper Printer
DVD Recorder
Ext Video Output
DICOM Package
Philips Veradius Unity
