Full Size (II)

Siemens Arcadis Varic

Compact, ergonomic and flexibile. This C-Arm is most selected for use in pain, spine and orthopedic applications.

II Size: 9"
Max Power: 2.3 kW

More Info
Philips BV Pulsera

Robust and customizable, valued for its power and economic cost. Widely used for multipurpose applications that require extended, powerful penetration.

II Size: 9" or 12"
Max Power: 7.5 or 15 kW

More Info
Siemens Arcadis Avantic

Most powerful and largest II based system on the market. Used for all applications, but is most valued for Vascular.

II Size: 13"
Max Power: 25 kW

More Info

Full Size (FD)

Philips Veradius

Digital Flat Detector for exceptional image quality at lower dose. Perfect for any clinical application.

FD Size: 10.3"
Max Power: 15 kW

More Info
Philips Veradius Neo

Improved C design that is especially helpful for accommodating bariatric patients and larger areas of anatomy.

FD Size: 10.3"
Max Power: 15 kW

More Info
Philips Veradius Unity

All new touchscreen tablet user interface for exceptional ease of use during image acquisition and postprocessing.

FD Size: 10.3"
Max Power: 15 kW

More Info


Cart Empty

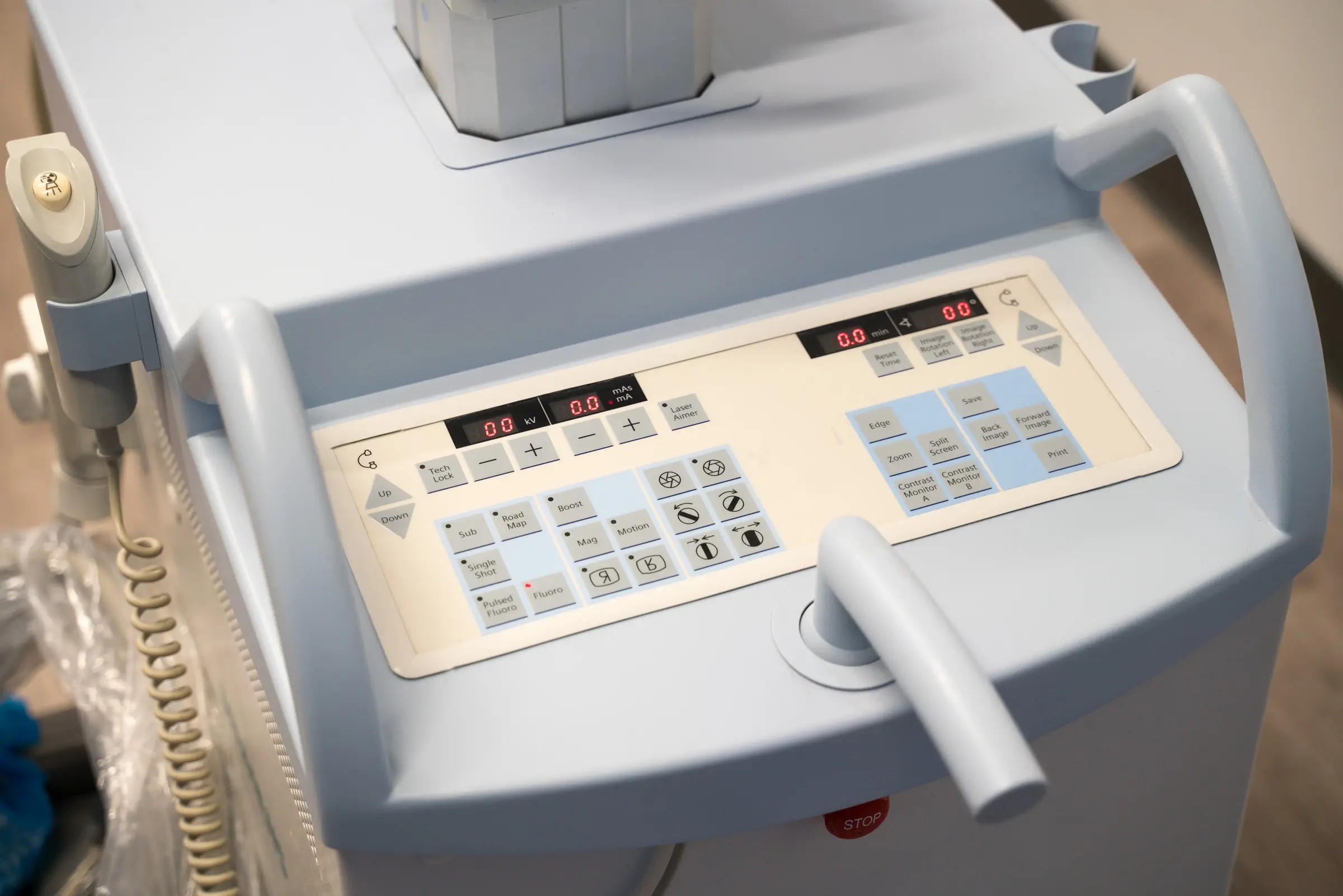

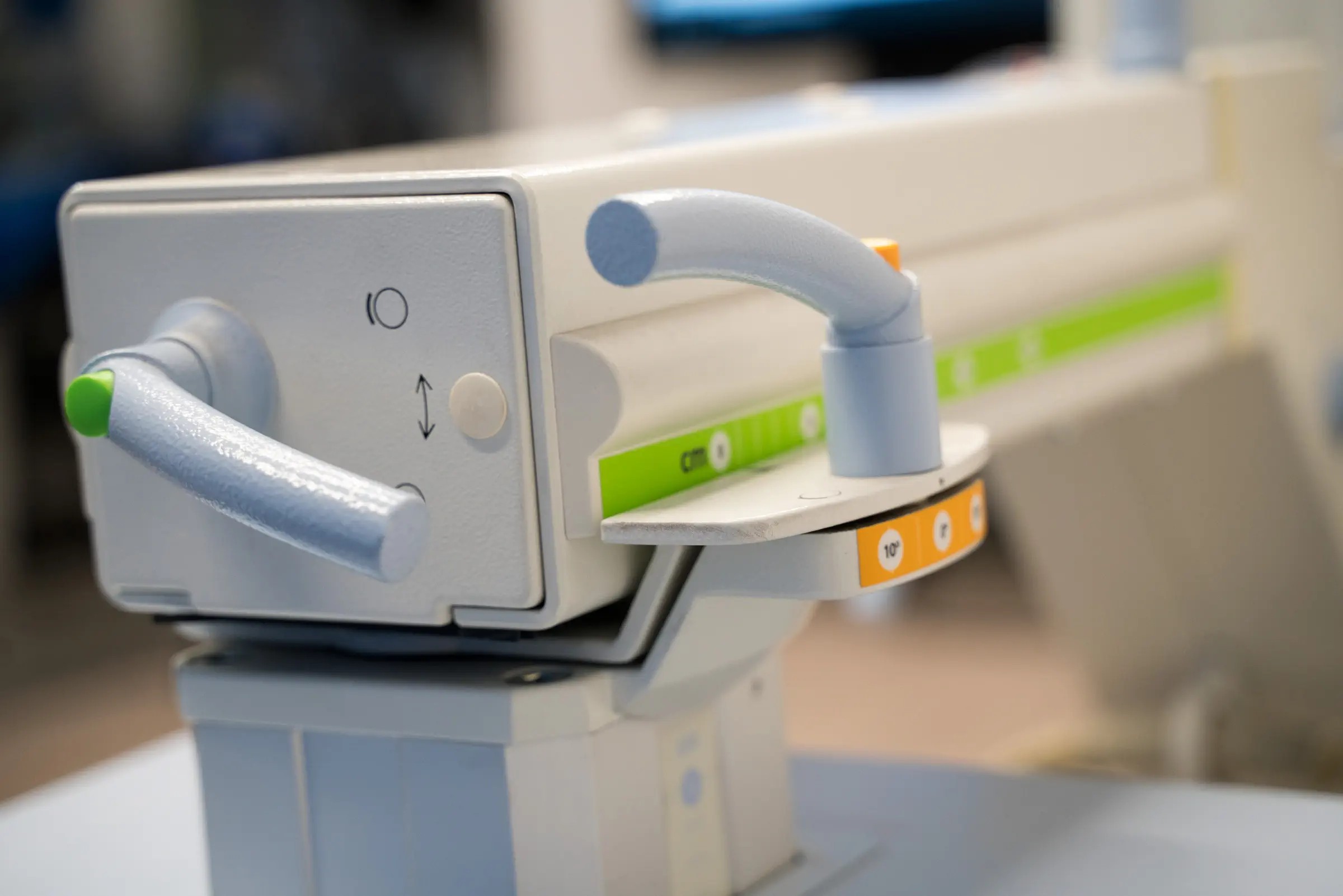

From image quality to operability, the features of the ARCADIS Varic set new benchmarks for Siemens C-Arms. The Arcadis is a small compact C-Arm that allows for more flexibility in positioning and patient access. It supports a broad range of applications including vascular surgery, trauma surgery, urology, orthopedics and more.

The Arcadis Varic offers an extraordinarily wide viewing angle of 170° and a fully digital 1K resolution of images. The C-Arm is also equipped with an Enhanced Acquisition System that can control the dose, contrast, and brightness of the x-ray that is being produced for improved image quality. To enhance ease of operation, the Arcadis offers a counterbalanced C-Arm design with surpassing values in free space, immersion depth and 40° overscan for superior patient access and positioning flexibility.

The Arcadis Varic is considered an multipurpose C-arm with improved clinical workflow through user-friendly features and design. Its full post-processing capabilities also make for easy integration in advanced clinical workflow.


X-ray Generation
Stationary anode
Nominal Power
2.3kW @ 100 kvp
Image intensifier
II formats
9", 6"
High Resolution CCD
User Interface
Two 18" or 19" LCD Flat Panel
Free space within C-arm
Orbital Rotation
+90° to -40°
C-arm depth
Source Image Distance
± 190°
Lowest lateral working position
Video Output
VGA(Optional), HDMI(Optional)
Networking (DICOM Optional)
USB(Image Export)
68" H x 32" W x 68" L
C-Arm Weight
520 lbs
74.4" H x 33.5" W x 27.6" D
Workstation Weight
395-415 lbs
Request a Quote
Save up to 25% on 5 Years!
Paper Printer
Ext Video Output
DICOM Package
Siemens Arcadis Varic
